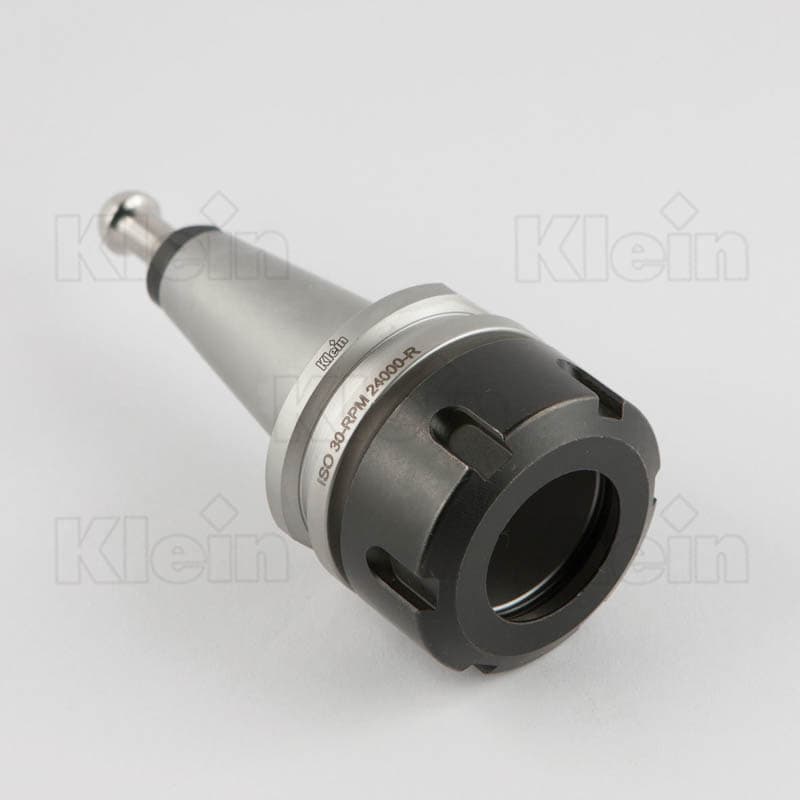

Collet chucks iso 30 inox

Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

  • Special tool holders produced in stainless steel AISI 420
  • Special micro-shot peening treatment;
  • Supplied with nut (without collet) and retaining pawl;
  • Needed when working with coolant: machines for marble, glass, aluminium working and others;
  • Highly recommended when processing resinoid wood and composite materials
  • Suggested when working in “humid” environment.
  • Extremely low maintenance costs, easy to clean;
  • When used with coolant our water-tight spring collets are suggested
  • Retaining pawl T118.891.R For: Biesse (after 09/09/92), Masterwood - Bulleri (motor H.S.D.)
  • Retaining pawl T118.792.R For: Alberti, Vitap, Masterwood (motor G. Colombo)
  • Retaining pawl T118.791.R (DIN 69872) For: Busellato, Weeke, Ima, Bulleri, Maka, Cosmec, Reichenbacher, Elte
  • For the spring collets see our item T119 - T123; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • To be used on our adjustable demount device Klein® T139.

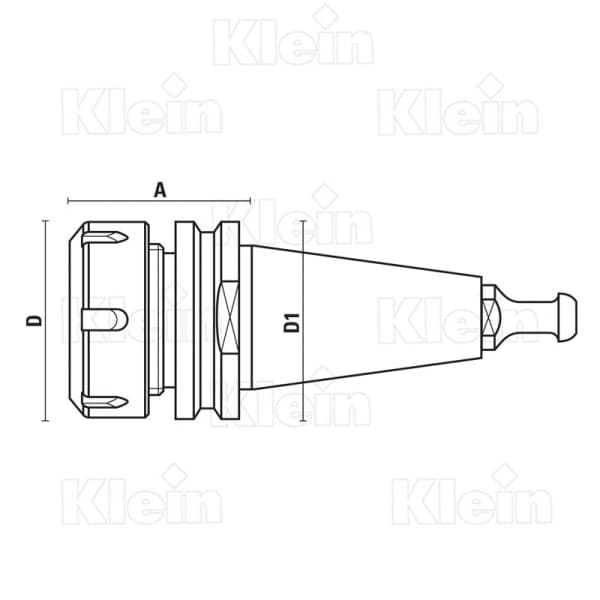

Variants:

#
Rotation
D1
Price:Add to cart
1. 023-T118-800-RAI(in stock)50RHZ091.001.R5050ø˜ 2ø·20 (Art. T119/ER32)€128.13/бр.

Collet chucks iso 30 inox (023-T118-800-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.001.R, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €128.13/бр. = €128.13

2. 023-T118-802-RAI(on request)50RHZ091.101.R ball bearing nut5050ø˜ 2ø·20 (Art. T119/ER32)€159.78/бр.

Collet chucks iso 30 inox (023-T118-802-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.101.R ball bearing nut, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €159.78/бр. = €159.78

3. 023-T118-830-RAI(on request)63RHZ091.002.R5055ø˜ 2ø·30 (Art. T123/ER40)€149.50/бр.

Collet chucks iso 30 inox (023-T118-830-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.002.R, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €149.50/бр. = €149.50

4. 023-T118-832-RAI(on request)63RHZ091.102.R ball bearing nut5055ø˜ 2ø·30 (Art. T123/ER40)€191.94/бр.

Collet chucks iso 30 inox (023-T118-832-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.102.R ball bearing nut, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €191.94/бр. = €191.94

5. 023-T118-811-RAI(on request)50RHZ091.001.R5050ø˜ 2ø·20 (Art. T119/ER32)€183.35/бр.

Collet chucks iso 30 inox (023-T118-811-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.001.R, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €183.35/бр. = €183.35

6. 023-T118-813-RAI(on request)50RHZ091.101.R ball bearing nut5050ø˜ 2ø·20 (Art. T119/ER32)€217.20/бр.

Collet chucks iso 30 inox (023-T118-813-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.101.R ball bearing nut, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €217.20/бр. = €217.20

7. 023-T118-815-RAI(on request)63RHZ091.002.R5055ø˜ 2ø·30 (Art. T123/ER40)€229.26/бр.

Collet chucks iso 30 inox (023-T118-815-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.002.R, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €229.26/бр. = €229.26

8. 023-T118-817-RAI(on request)63RHZ091.102.R ball bearing nut5055ø˜ 2ø·30 (Art. T123/ER40)€269.60/бр.

Collet chucks iso 30 inox (023-T118-817-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.102.R ball bearing nut, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €269.60/бр. = €269.60

9. 023-T118-821-RAI(on request)50RHZ091.001.R5050ø˜ 2ø·20 (Art. T119/ER32)€183.35/бр.

Collet chucks iso 30 inox (023-T118-821-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.001.R, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €183.35/бр. = €183.35

10. 023-T118-823-RAI(on request)50RHZ091.101.R ball bearing nut5050ø˜ 2ø·20 (Art. T119/ER32)€217.20/бр.

Collet chucks iso 30 inox (023-T118-823-RAI)

D: 50, Rotation: RH, Clamping nut: Z091.101.R ball bearing nut, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €217.20/бр. = €217.20

11. 023-T118-825-RAI(on request)63RHZ091.002.R5055ø˜ 2ø·30 (Art. T123/ER40)€229.26/бр.

Collet chucks iso 30 inox (023-T118-825-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.002.R, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €229.26/бр. = €229.26

12. 023-T118-827-RAI(on request)63RHZ091.102.R ball bearing nut5055ø˜ 2ø·30 (Art. T123/ER40)€269.60/бр.

Collet chucks iso 30 inox (023-T118-827-RAI)

D: 63, Rotation: RH, Clamping nut: Z091.102.R ball bearing nut, D1: 50, A: 55, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €269.60/бр. = €269.60
