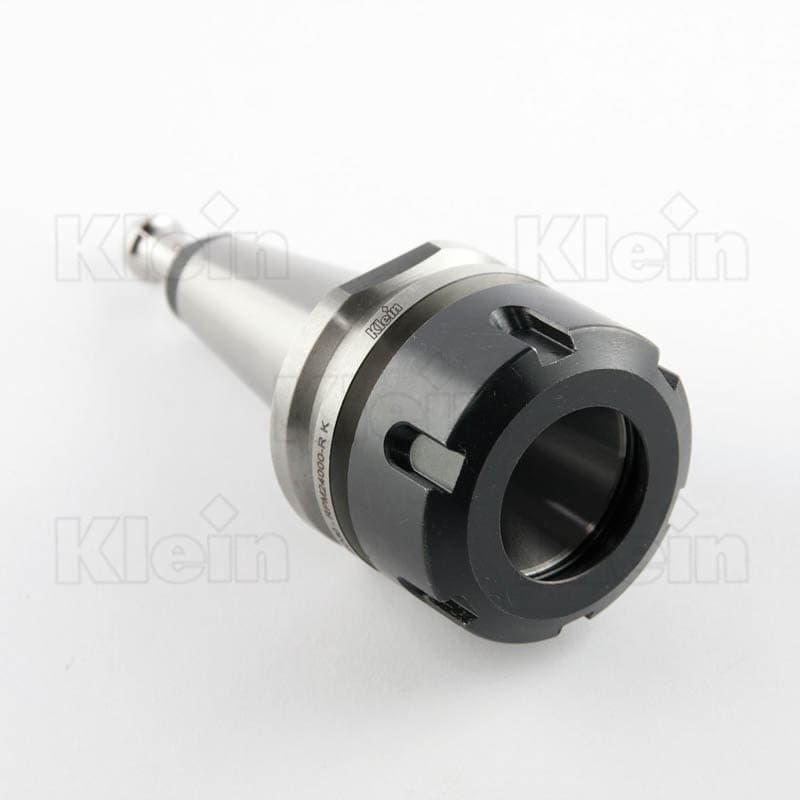

Collet chucks iso30 for biesse & hsd

Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

  • Supplied with nut (without collet) and retaining pawl
  • Retaining pawl T118.891.R for: Biesse (after 09/09/92), Masterwood - Bulleri (motor H.S.D.)
  • Spring collets DIN 6499
  • Threaded nut DIN 6499/ER40
  • For the spring collets see our item T119 and T123; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • To be used on our adjustable demount device Klein® T139
  • The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
  • The ball bearing clamping nut improves the clamping precision thanks to a homogeneous clamping force. It can be used both for the right-hand and left-hand rotation.

Variants:

#
D1
Price:Add to cart
1. 023-T118-800-R(in stock)50RHZ091.001.R5050ø˜ 2ø·20 (Art. T119/ER32)€99.65/бр.

Collet chucks iso30 for biesse & hsd (023-T118-800-R)

D: 50, Rotation: RH, Clamping nut: Z091.001.R, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €99.65/бр. = €99.65

2. 023-T118-800-L(on request)50LHZ091.001.L5050ø˜ 2ø·20 (Art. T119/ER32)€104.81/бр.

Collet chucks iso30 for biesse & hsd (023-T118-800-L)

D: 50, Rotation: LH, Clamping nut: Z091.001.L, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €104.81/бр. = €104.81

3. 023-T118-802-R(on request)50RHZ091.101.R ball bearing nut5050ø˜ 2ø·20 (Art. T119/ER32)€130.84/бр.

Collet chucks iso30 for biesse & hsd (023-T118-802-R)

D: 50, Rotation: RH, Clamping nut: Z091.101.R ball bearing nut, D1: 50, A: 50, Spring collets: ø˜ 2ø·20 (Art. T119/ER32)

Enter quantity:

1 бр. × €130.84/бр. = €130.84

4. 023-T118-830-R(on request)63RHZ091.002.R5060ø˜ 2ø·30 (Art. T123/ER40)€125.68/бр.

Collet chucks iso30 for biesse & hsd (023-T118-830-R)

D: 63, Rotation: RH, Clamping nut: Z091.002.R, D1: 50, A: 60, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €125.68/бр. = €125.68

5. 023-T118-830-L(on request)63LHZ091.002.L5060ø˜ 2ø·30 (Art. T123/ER40)€141.37/бр.

Collet chucks iso30 for biesse & hsd (023-T118-830-L)

D: 63, Rotation: LH, Clamping nut: Z091.002.L, D1: 50, A: 60, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €141.37/бр. = €141.37

6. 023-T118-832-R(on request)63RHZ091.102.R ball bearing nut5060ø˜ 2ø·30 (Art. T123/ER40)€167.65/бр.

Collet chucks iso30 for biesse & hsd (023-T118-832-R)

D: 63, Rotation: RH, Clamping nut: Z091.102.R ball bearing nut, D1: 50, A: 60, Spring collets: ø˜ 2ø·30 (Art. T123/ER40)

Enter quantity:

1 бр. × €167.65/бр. = €167.65
