Drilling for cremone bolts
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.
TRIMATIC 43/0 was designed for window frame makers who have problems with drilling holes to fit the handle on wood, wood/aluminium and PVC windows.

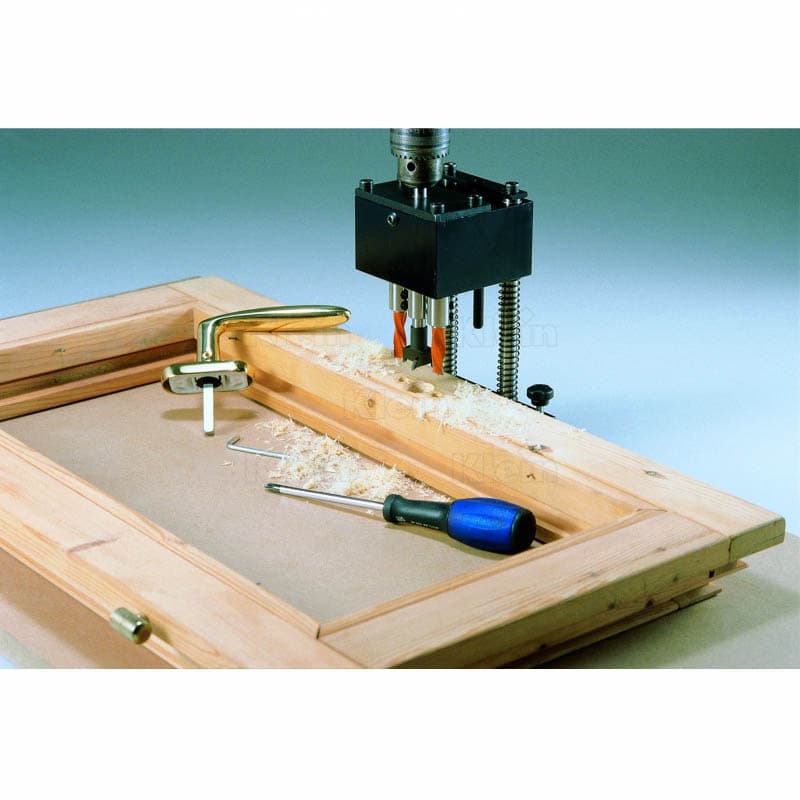

TRIMATIC 43/0 allows drilling the three holes necessary to fit the cremone bolt in one single pass with a normal pillar drill or a portable electric drill.

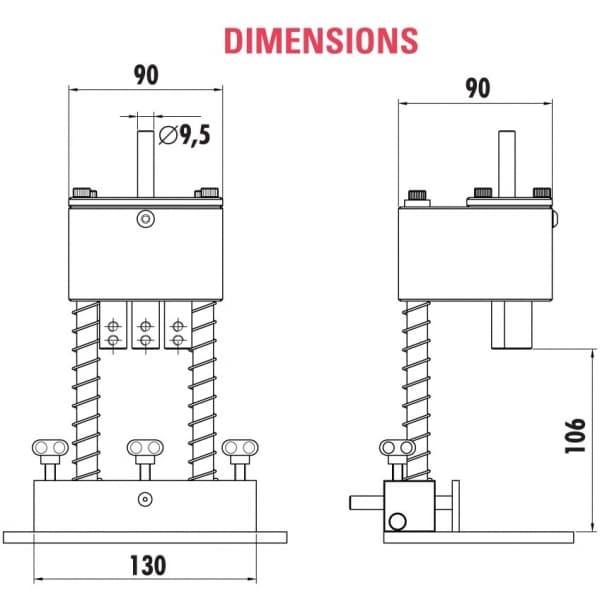

TRIMATIC 43/0, a drilling jig for handles with a distance between centres of the retaining screws of 43 mm.
The central bit and those mounted in the external positions have right hand rotation, the other tools have left hand rotation.
NB: Boring bits are not included.
Some examples of drilling patterns
SIEGENIA-TRIAL WEIDTMANN-KURLER
U260.120.L 2 pc. U260.100.L 2 pc.
U260.120.R 1 pc. U260.140.R 1 pc.
G-U JET77 OLIVEN
U260.100.L 2 pc. U260.080.L 2 pc.
U260.120.R 1 pc. U260.1420.R 1 pc.
Documents
Variants:
| # | Description | Price: | Add to cart |
|---|---|---|---|
| 1. 023-TRIMATIC 43/0(in stock) | Drilling jig for cremone bolt | €429.49/бр. |
