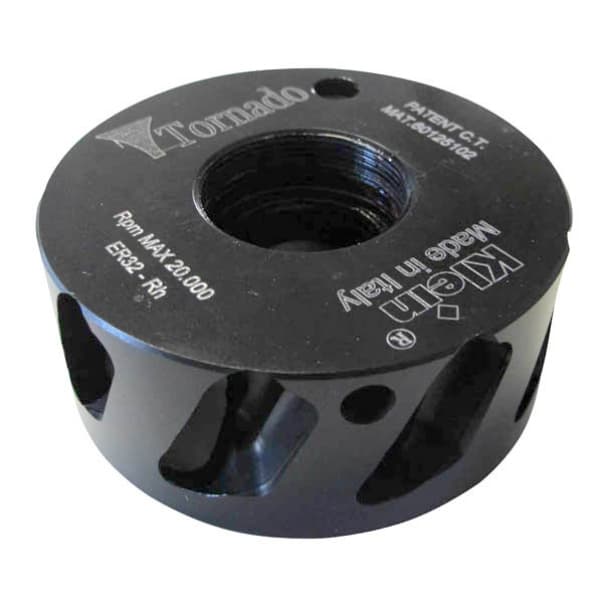

Dust & chip extraction nut "tornado®"
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.
The new solution by Sistemi helps both dust and chipwoods evacuation during Nesting and conventional CNC Routing operations.

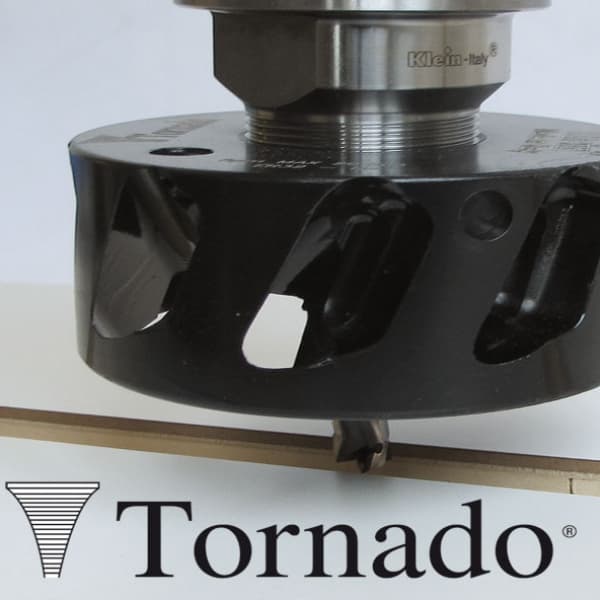

Easy to assemble directly on the collet chuck instead of the standard nut, the new Klein Tornado® provides a big improvement of dust evacuation, removing it from the work piece directly into the centralized extraction system of the CNC machine.
- Available in two diameters: ø98 - ø80 (for those who have problems of space in the tool changer of CNC)
- Tool body in light alloy
- Surface hardening treatment for longer performance
- Suitable for any type of collet chucks (ISO, BT, HSK ...)
- Maximum tool diameter: Tornado ø98= 70 mm / Tornado ø80= 60 mm
- Optimal gap between Tornado® and material is 2 mm (0.070"). It works properly up to 6 mm (0.023").
- Maximum speed rotation up to 20.000 RPM
- Balanced at G2,5
- Tool weight 0,4 kg (0.8 lb)
- Single packed in carton box
Watch the differences between working with and without Tornado®:
Variants:

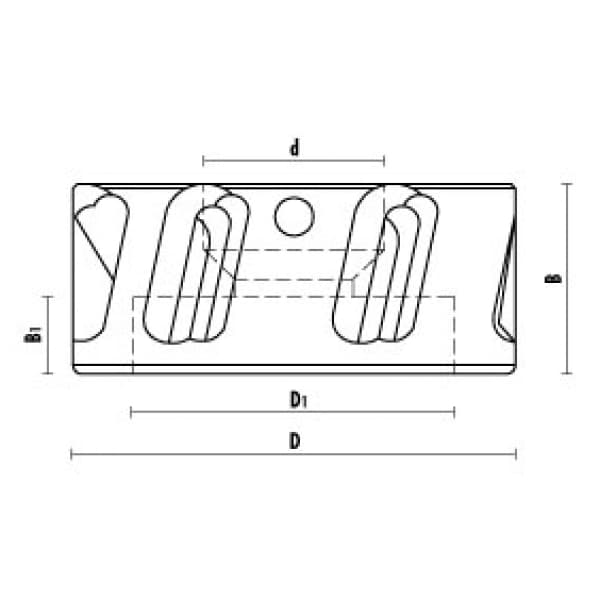

| # | B | Rotation | Price: | Add to cart | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1. 023-T139-501-R(in stock) | M 40x1,5 | 98 | 17 | 42 | Rh | 74 | DIN 6499 (ER32) | €515.38/бр. | |
| 2. 023-T139-502-R(on request) | M 50x1,5 | 98 | 17 | 42 | Rh | 74 | DIN 6499 (ER40) | €515.38/бр. | |
| 3. 023-T139-503-R(on request) | M 32x1,5 | 98 | 17 | 42 | Rh | 74 | DIN 6499 (ER25) | €515.38/бр. | |
| 4. 023-T139-522-R(on request) | M 48x2 | 98 | 17 | 42 | Rh | 74 | DIN 6388 (EOC25-SYOZ25) | €515.38/бр. | |
| 5. 023-T139-581-R(on request) | M 40x1,5 | 80 | 13 | 42 | Rh | 64 | DIN 6499 (ER32) | Price on request | Ask |
