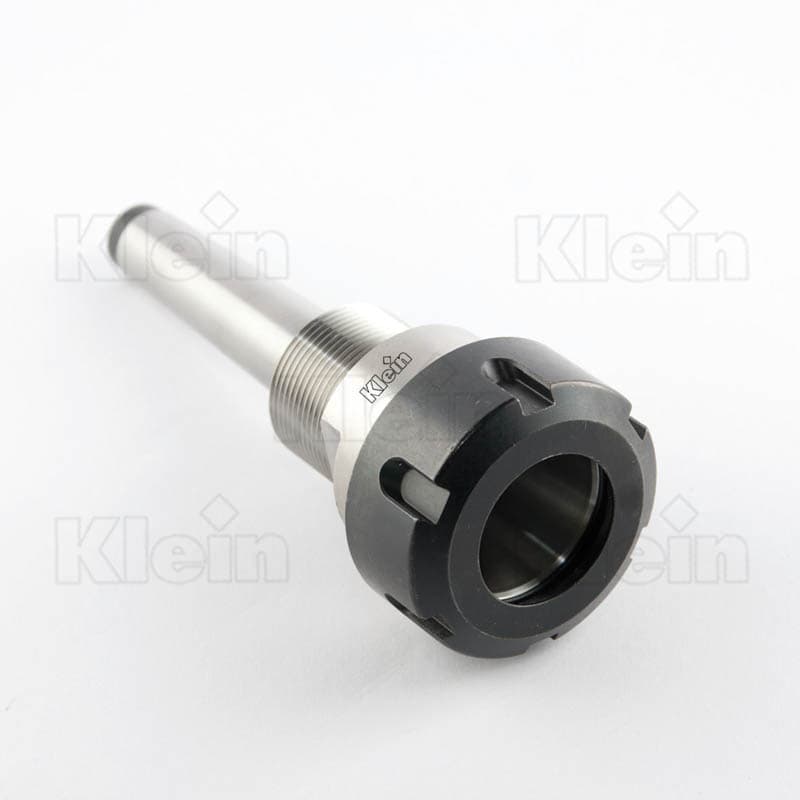

Collet chucks morse taper

Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

Supplied with nut (without collet).
Threaded nut DIN 6499.
For the spring collets see our item T119; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).

Variants:

#	D				A	Spring collets	Price:	Add to cart
1. 023-T118-200-R(on request)	50	RH	Z091.001.R	C.M. 2 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€164.94/бр.	Collet chucks morse taper (023-T118-200-R) D: 50, Rotation: RH, Clamping nut: Z091.001.R, Collet chuck: C.M. 2 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €164.94/бр. = €164.94
2. 023-T118-200-L(on request)	50	LH	Z091.001.L	C.M. 2 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€206.77/бр.	Collet chucks morse taper (023-T118-200-L) D: 50, Rotation: LH, Clamping nut: Z091.001.L, Collet chuck: C.M. 2 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €206.77/бр. = €206.77
3. 023-T118-202-R(on request)	50	RH	Z.091.101.R ball bearing nut	C.M. 2 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€198.94/бр.	Collet chucks morse taper (023-T118-202-R) D: 50, Rotation: RH, Clamping nut: Z.091.101.R ball bearing nut, Collet chuck: C.M. 2 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €198.94/бр. = €198.94
4. 023-T118-300-R(on request)	50	RH	Z091.001.R	C.M. 3 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€193.68/бр.	Collet chucks morse taper (023-T118-300-R) D: 50, Rotation: RH, Clamping nut: Z091.001.R, Collet chuck: C.M. 3 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €193.68/бр. = €193.68
5. 023-T118-300-L(on request)	50	LH	Z091.001.L	C.M. 3 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€242.15/бр.	Collet chucks morse taper (023-T118-300-L) D: 50, Rotation: LH, Clamping nut: Z091.001.L, Collet chuck: C.M. 3 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €242.15/бр. = €242.15
6. 023-T118-302-R(on request)	50	RH	Z091.101.R ball bearing nut	C.M. 3 / FIL. M30	70	ø 2ø·20 (Art. T119/ER32)	€229.01/бр.	Collet chucks morse taper (023-T118-302-R) D: 50, Rotation: RH, Clamping nut: Z091.101.R ball bearing nut, Collet chuck: C.M. 3 / FIL. M30, A: 70, Spring collets: ø 2ø·20 (Art. T119/ER32) Enter quantity: Quantity (бр.) 1 бр. × €229.01/бр. = €229.01
