Pre set leader

Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

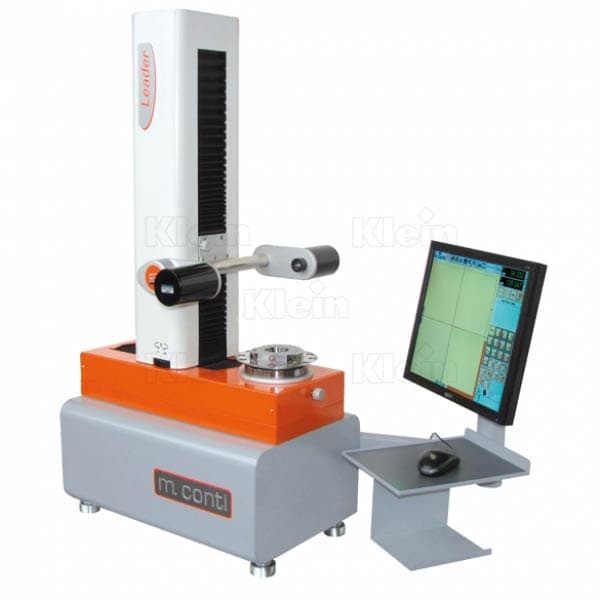

Preset LEADER are high precision instruments performing high technology operations. Their structure is guaranteed by best quality components along with an interface very simple and intuitive to use.

Designed and developed by m.conti preset calipers measuring instruments and Sistemi in the field of tooling manufacture, the Preset LEADER are also essential in sharpening centers and production units of furniture or windows, for checking the condition of the tools and their settings before being mounted in the machine. Accuracy represents less waste, less CNC machine downtime and more profit for your business.

In recent years the family of the Preset LEADER has increased thanks to aditional models with new combinations of diameter and height, satisfying most of the needs of market operators. Moreover, after checking by our technical department, presetter devices with special dimensions can also be constructed on request.

TECHNICAL FEATURES

  • Structural components heat treated

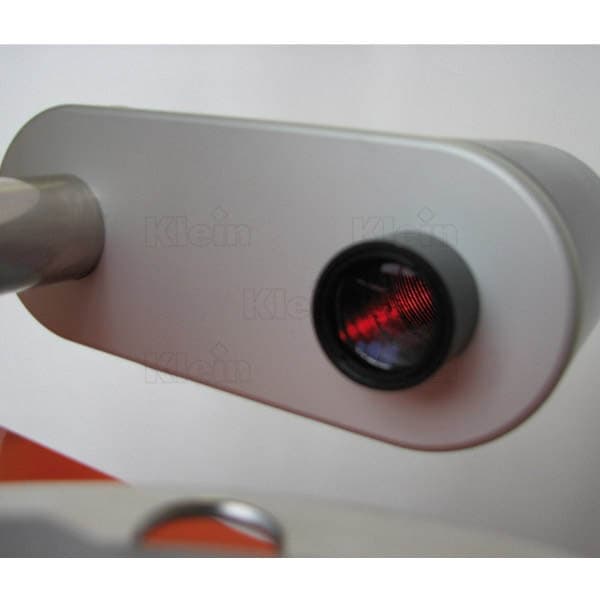

  • High resolution CMOS Camera
  • Telecentric lenses
  • Measurement field 7x7
  • Optical zoom 40x
  • Digital zoom 16x

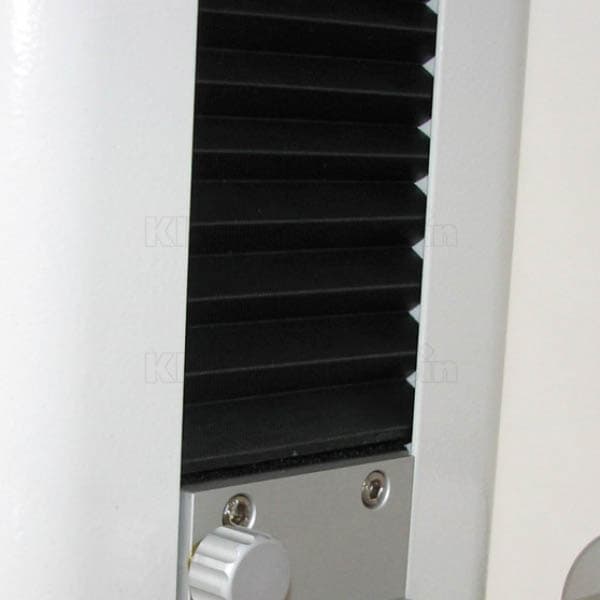

  • Recirculating ball bearing linear guides with preloaded slides
  • Micrometric movements by control knob

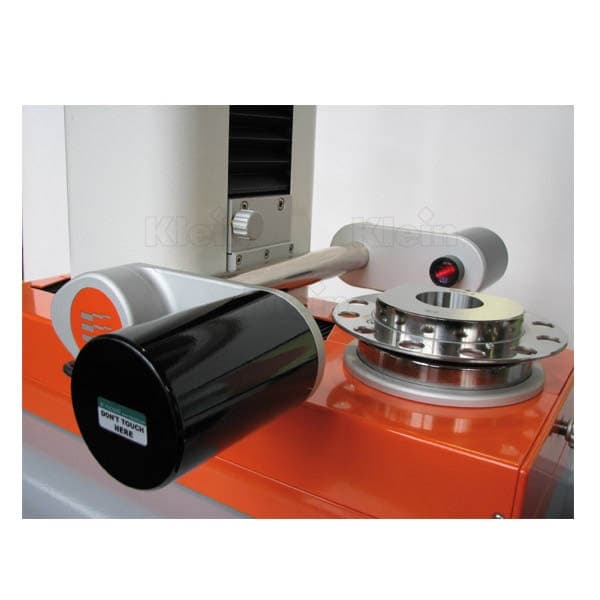

  • Interchangeable tooling holder
  • Housed-in PC
  • 17” TFT colour monitor
  • Mouse
  • 7 USB outputs
  • 1 Ethernet-Lan output


OPTIONALS

  • Holding cart
  • Label printer
  • A4 laser printer

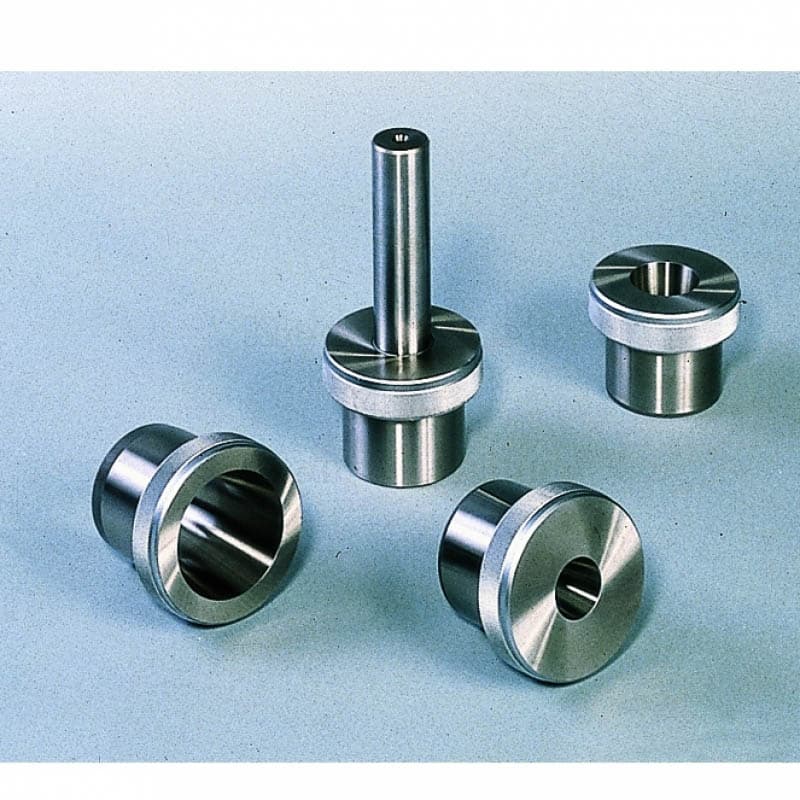

  • Optional cone-holders
    The Preset Leader are supplied with a cone-holder (ISO30, ISO40, ISO50)     on your choice. Other cone-holders can also be purchased later.



SOFTWARE CVS

The software, CVS (Conti Vision System), was designed in-house and further developed in collaboration with the professionals and machine operators to ensure the completeness of the functions and best ease of use.

It is Windows-based and can be updated via Internet connection.

CVS Software features

  • Tool diameter and height measuring performed:

- with Fixed Axis: manual detection, by approaching the profile of the tool
- with Mobile Axis: automatic detection, simply by rotating the tool

  • Real view function
  • Storing of 200 machine origins
  • Storing of 20.000 tools
  • Tool list creation
  • Storing of tool profile
  • Printing of tool profile
  • Printing of labels
  • Printing of screenshot
  • Alphanumerical keyboard on screen
  • Various geometrical functions:

- Radius
- Angle
- Perpendicularity
- Tangent
- Goniometer function on screen
- Etc.

  • Language selection
  • Online software update

CVS Software Optional:

  • Touch screen
  • Tool file generation for sending data to CNC machines
  • Setting for Balluff sensor



Watch our video about Preset Leader on the Sistemi Klein channel on Youtube:

Variants:

#
Price:Add to cart
1. 023-PRE-SET LEADER 33(in stock)H 360 mm - "ˆ… 320 mmN/APrice on requestAsk
2. 023-PRE-SET LEADER 35(on request)H 500 mm - "ˆ… 320 mmN/APrice on requestAsk
3. 023-PRE-SET LEADER 53(on request)H 360 mm - "ˆ… 520 mmN/APrice on requestAsk
4. 023-PRE-SET LEADER 55(on request)H 500 mm - "ˆ… 520 mmN/APrice on requestAsk
5. 023-PRE-SET BL-ISO 30(on request)N/Afor tool holders ISO 30Price on requestAsk
6. 023-PRE-SET BL-ISO 40(on request)N/Afor tool holders ISO 40Price on requestAsk
7. 023-PRE-SET BL-ISO 50(on request)N/Afor tool holders ISO 50Price on requestAsk
8. 023-PRE-SET BL-HSK 63F(on request)N/Afor tool holders HSK 63 F/D/BPrice on requestAsk
9. 023-PRE-SET BL-HSK 63A(on request)N/Afor tool holders HSK 63A/C/EPrice on requestAsk
10. 023-PRE-SET BL-HSK 80A(on request)N/Afor tool holders HSK 80Price on requestAsk
11. 023-PRE-SET BL-30x130(on request)N/Awith arbor L=130 for tools with bore d=30Price on requestAsk
12. 023-PRE-SET BL-30x300(on request)N/Awith arbor L=300 for tools with bore d=30Price on requestAsk
13. 023-PRE-SET BL-35x130(on request)N/Awith arbor L=130 for tools with bore d=35Price on requestAsk
14. 023-PRE-SET BL-35x300(on request)N/Awith arbor L=300 for tools with bore d=35Price on requestAsk
15. 023-PRE-SET BL-40x130(on request)N/Awith arbor L=130 for tools with bore d=40Price on requestAsk
16. 023-PRE-SET BL-40x300(on request)N/Awith arbor L=300 for tools with bore d=40Price on requestAsk
17. 023-PRE-SET BL-50x130(on request)N/Awith arbor L=130 for tools with bore d=50Price on requestAsk
18. 023-PRE-SET BL-50x300(on request)N/Awith arbor L=300 for tools with bore d=50Price on requestAsk
19. 023-PRE-SET B- ISO 30(on request)N/AProduction before June 2012 (until serial n° Y12/L1177)Price on requestAsk
20. 023-PRE-SET B- ISO 40(on request)N/AProduction before June 2012 (until serial n° Y12/L1177)Price on requestAsk
21. 023-PRE-SET B- ISO 50(on request)N/AProduction before June 2012 (until serial n° Y12/L1177)Price on requestAsk
22. 023-PRE-SET B- HSK 63 F(on request)N/AProduction before June 2012 (until serial n° Y12/L1177)Price on requestAsk
