Pre set p368lr
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

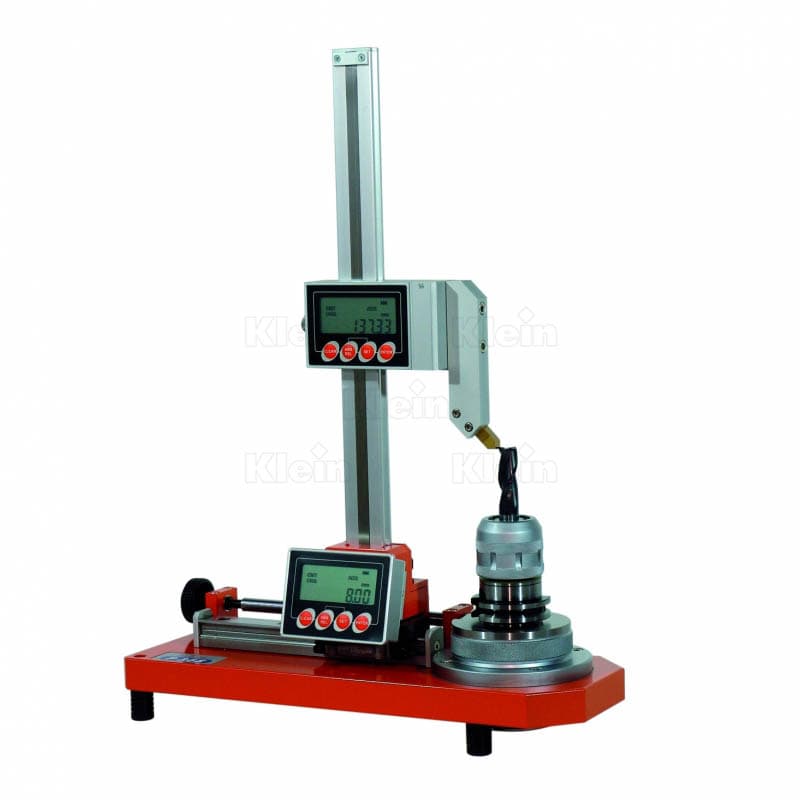

The Preset P368LR is a precision tool setting instrument developed by
, easy and quick to use, especially designed to meet the requirements of the NC machine operators. It is mainly used in the wood, metal and glass working field where there is a constant need to set or adjust the tools.
The Preset P368LR measures both the radius/diameter and the length/height of the tools. Working with different tool holders or various machines can be possible by setting up to 4 origins. The measures shown in the display can be set directly in the machine and the production quickly starts again.
- Excellent price/quality relationship
- Considerable cutback of tooling-up times, no waste of material
- 4 machine origins
- It measures shank tools and cutterheads
- Battery powered – no need of electrical plug
- Large display easy to read
- One touch conversion mm/inch
- Interchangeable cone holders (ISO, HSK, VDI, arbors)
TECHNICAL FEATURES
Slide guides:
- X axis: slide guide with preloaded recirculating ball bearings
- Z axis: slide guide in anti-friction material
Measurement detection: Precision magnetic strip
OPTIONALS
Tightening device
Upon request the Preset P368LR can be supplied with a special tightening device. This tightening equipment is suitable only for a first soft tighten of the tool, when adjusting the clamping length in the tool holder. Afterwards, the tool must be strongly tightened on a separate proper clamping device (see our item T139). Any incorrect use of the P368LRB can invalidate the precision of the whole instrument.
Optional cone-holders
The Preset P368LR are supplied with a cone-holder (ISO30, ISO40, ISO50) on your choice. Other cone-holders can also be purchased later.

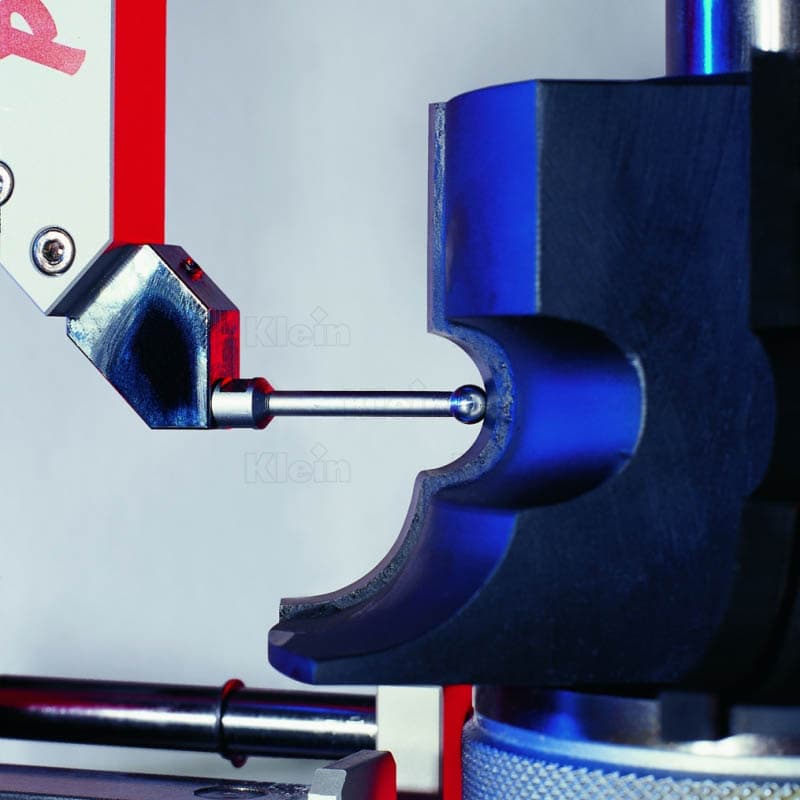

T.SFERA Item
It is a special spherical feeler able to measure shaped cutters.
Variants:
| # | Measuring range | Price: | Add to cart | |
|---|---|---|---|---|
| 1. 023-PRE-SET P368LR(on request) | H 300 mm - ø¸250 mm | N/A | Price on request | Ask |
| 2. 023-AS1500014(on request) | N/A | Support + Blocking fork flange=46 | €429.49/бр. | |
| 3. 023-AS1500020(on request) | N/A | Support + Blocking fork flange=30 | €429.49/бр. | |
| 4. 023-AS1500044(on request) | N/A | Support + Blocking fork flange=41 | €429.49/бр. | |
| 5. 023-AS1500062(on request) | N/A | Support + Blocking fork flange=36 | €429.49/бр. | |
| 6. 023-AS1500069(on request) | N/A | Support + Blocking fork flange=47 | €429.49/бр. | |
| 7. 023-AS1500028(on request) | N/A | Blocking fork flange=36 | €429.49/бр. | |
| 8. 023-AS1500029(on request) | N/A | Blocking fork flange=30 | €429.49/бр. | |
| 9. 023-AS1500049(on request) | N/A | Blocking fork flange=41 | €429.49/бр. | |
| 10. 023-AS1500050(on request) | N/A | Blocking fork flange=45 | €429.49/бр. | |
| 11. 023-AS1500051(on request) | N/A | Blocking fork flange=47 | €429.49/бр. | |
| 12. 023-AS1500052(on request) | N/A | Blocking fork flange=60 | €429.49/бр. | |
| 13. 023-PRE-SET B-ISO 30(on request) | N/A | Spare cone-holders for tool holders ISO 30 | Price on request | Ask |
| 14. 023-PRE-SET B-ISO 40(on request) | N/A | Spare cone-holders for tool holders ISO 40 | Price on request | Ask |
| 15. 023-PRE-SET B-ISO 50(on request) | N/A | Spare cone-holders for tool holders ISO 50 | Price on request | Ask |
| 16. 023-PRE-SET B-HSK 63F(on request) | N/A | Spare cone-holders for tool holders HSK 63 F/D/B | Price on request | Ask |
| 17. 023-PRE-SET B-HSK 63A(on request) | N/A | Spare cone-holders for tool holders HSK 63 A/C/E | Price on request | Ask |
| 18. 023-PRE-SET B-HSK 80A(on request) | N/A | for tool holders HSK 80 | Price on request | Ask |
| 19. 023-PRE-SET B- 30x130(on request) | N/A | Spare cone-holder with arbor L=130, for tools with bore d=30 | Price on request | Ask |
| 20. 023-PRE-SET B- 30x300(on request) | N/A | Spare cone-holder with arbor L=300, for tools with bore d=30 | Price on request | Ask |
| 21. 023-PRE-SET B- 35x130(on request) | N/A | Spare cone-holder with arbor L=130, for tools with bore d=35 | Price on request | Ask |
| 22. 023-PRE-SET B- 35x300(on request) | N/A | Spare cone-holder with arbor L=300, for tools with bore d=35 | Price on request | Ask |
| 23. 023-PRE-SET B- 40x130(on request) | N/A | Spare cone-holder with arbor L=130, for tools with bore d=40 | Price on request | Ask |
| 24. 023-PRE-SET B- 40x300(on request) | N/A | Spare cone-holder with arbor L=300, for tools with bore d=40 | Price on request | Ask |
| 25. 023-PRE-SET B- 50x130(on request) | N/A | Spare cone-holder with arbor L=130, for tools with bore d=50 | Price on request | Ask |
| 26. 023-PRE-SET B- 50x300(on request) | N/A | Spare cone-holder with arbor L=300, for tools with bore d=50 | Price on request | Ask |
| 27. 023-T-SFERA-P368(on request) | N/A | Spherical feeler for shaped cutters | €315.98/бр. |
