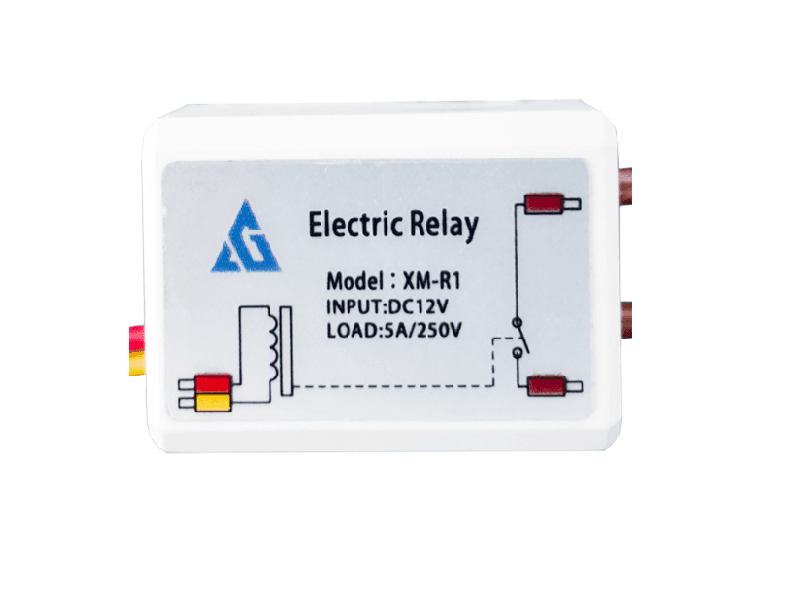

Reley for miriors 220V
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.
Electrical Specifications - MODEL XM-R1-WP
Coil Operating Voltage - (MIN.) 12V DC
Coil Voltage - (MIN. / MAX.) 9V DC (at 23 ± 5°C) / 15.6V DC (130% of rated voltage)
Coil Rated Current and Power - 30mA DC ± 10% (at 23 ± 5°C) / 360mW
Contact Rating - (NOM. / MAX.) 10A 250V AC / 15A 125V AC (resistive load)
Operation and Release Time - (MAX.) 15ms / 10ms
Single Pole Contact Configuration (1 of a)
Contact Resistance - (MAX.) 100mΩ (at 6V DC / 1A)
Others
Resistance Insulation - (MIN.) 1000MΩ (at 500V DC)
DIELECTRIC ABILITY (BETWEEN OPEN CONTACTS) 750V AC, 50/60Hz (1 minute)
DIELECTRIC ABILITY (BETWEEN CONTACTS AND MOUNTING) 1500V AC, 50/60Hz (1 minute)
OPERATING TEMPERATURE +5 ± +50°C
SORTING TEMPERATURE -40 ± +85°C
STORAGE HUMIDITY 25 ± 85%
SAFETY STANDARDS Complies with EN61810-1:2008
IP CLASS IP 67 (not applicable to cable end)

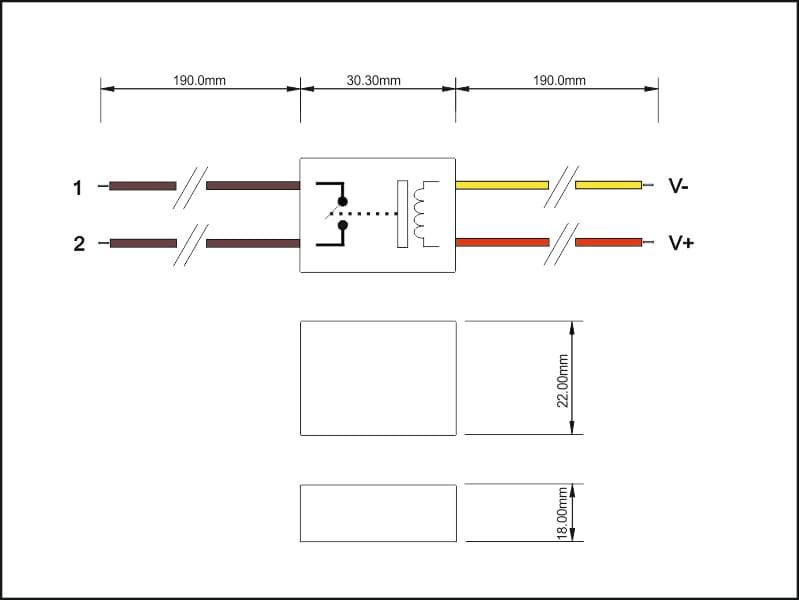

CABLES Output wire: 20AWG, length = 175 mm Input wire: 22AWG, length = 175 mm
DIMENSIONS 32 x 22.5 x 14 cm (L x W x H)
NET WEIGHT 23.1g
Variants:
| # | Colour | Dimensions | Price: | Add to cart | |
|---|---|---|---|---|---|
| 1. 21-0305-91-102(in stock) | No | White | 30,30x22x18 | €3.94/бр. | |
| 2. 21-0305-92-102(in stock) | Yes | White | 30,30x22x18 | €4.91/бр. |
