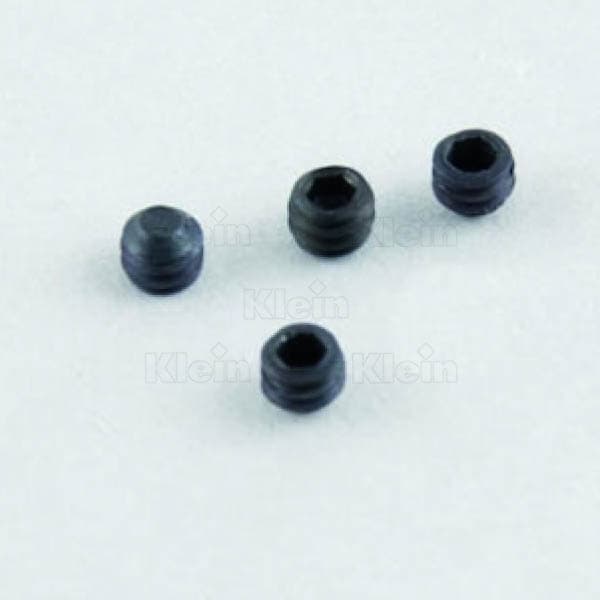

Set screws

Set screws (023-Z051-005-R)

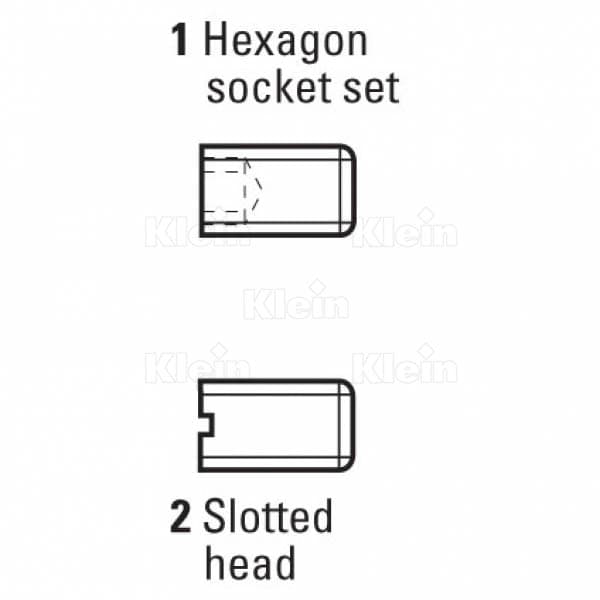

Drawing: 1, Description: M 3x2,5 ch 1,6 with flat point

Set screws (023-Z051-101-R)

Drawing: 1, Description: M 2,5x2,5 ch 1,3 with flat point

Set screws (023-Z051-102-R)

Drawing: 1, Description: M 4x4 ch 2 with flat point

Set screws (023-Z051-300-R)

Drawing: 1, Description: M 6x6 ch 3 with cone point for L130 D=ø 8·12

Set screws (023-Z051-301-R)

Drawing: 1, Description: M 5x5 ch 2,5 with flat point

Set screws (023-Z051-302-R)

Drawing: 2, Description: M 5x10

Set screws (023-Z051-303-R)

Drawing: 1, Description: M 5x6 ch 2,5 with cone point for art. L130 D=ø 4·8

Set screws (023-Z051-304-R)

Drawing: 1, Description: M 6x6 ch 3 with flat point for art. L131 D=ø 12

Set screws (023-Z051-306-R)

Drawing: 1, Description: M 5x6 ch 2,5 with cone point

Set screws (023-Z051-311-R)

Drawing: 1, Description: M 4x5 ch 2 with flat point for art. Z011

Set screws (023-Z051-313-R)

Drawing: 1, Description: M 5x4 ch 2,5 with flat point

Set screws (023-Z051-314-R)

Drawing: 1, Description: M 6x5 ch 3 with flat point for art. L131 D=ø 10

Set screws (023-Z051-321-R)

Drawing: 1, Description: M 3x5 ch 1,6

Set screws (023-Z051-404-R)

Drawing: 1, Description: M 3x6 ch 1,5 with cone point for art. W182

Set screws (023-Z051-407-R)

Drawing: 1, Description: M 6x10 ch 3

Set screws (023-Z051-704-R)

Drawing: 1, Description: M 8x12 ch 4 with cyl point for art. SA

Set screws (023-Z051-705-R)

Drawing: 1, Description: M 8x16 ch 4 with cyl point for art. SA
