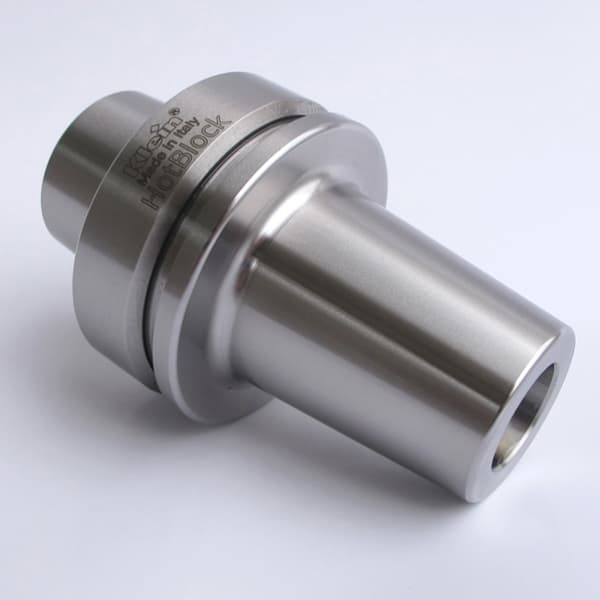

Shrink fit chucks hsk63f - hotblock®
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

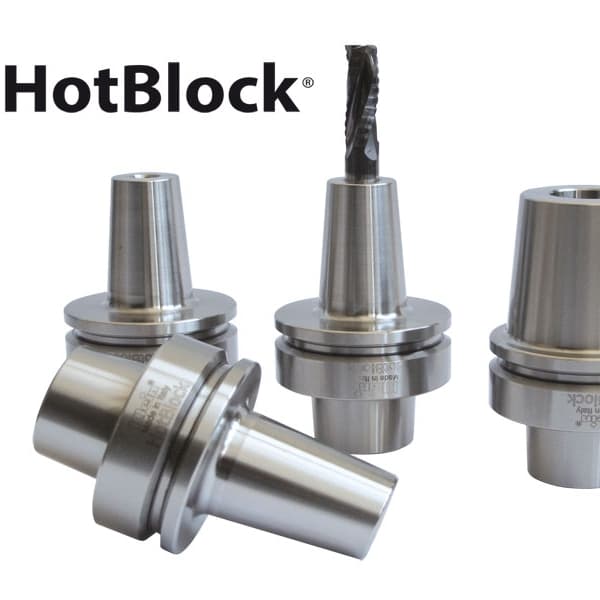

HOTBLOCK®: the new shrink fit chucks are high precision toolholders which ensure more precision having less coupling thanks to its special tight on the shank tool by thermal clamping. First, the collet tip is heated with the special shrink fit unit (see our article below), causing it to expand. The cutter shank is then inserted, and the collet is cooled to ambient temperature with the cooling machine (see our article below). This causes the collet to contract precisely around the cutter shank with a special concentricity less than 3 micron, therefore the highest precision and stability for high performance.
- Concentricity ≤ 0,003 mm
- High precision toolholders guaranteed by thermally induced shrink fit
- High rigidity and balance for heavy CNC working
- For HS and HW cutting tool
- Balanced to 24.000 RPM at G 2,5
- Right and left-hand rotation
- Cutting tool shank must have tolerance h6 with cylindrical shank (no flats)
Variants:

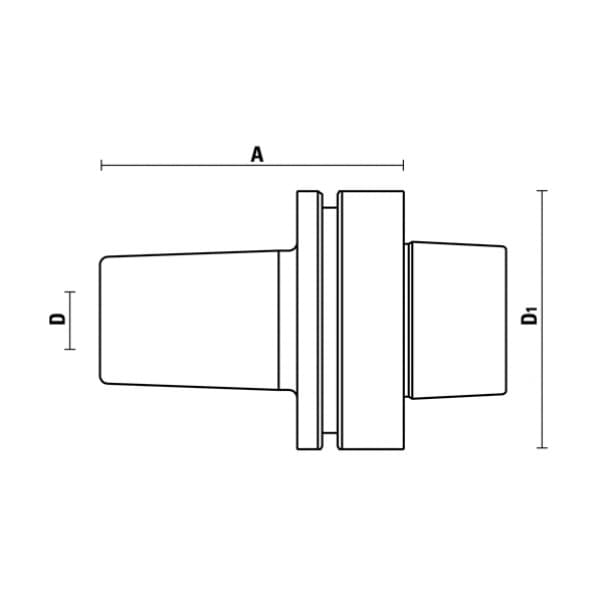

| # | A | D1 | Price: | Add to cart | |
|---|---|---|---|---|---|
| 1. 023-T120-580-N(in stock) | 8 | 76 | 63 | €287.91/бр. | |
| 2. 023-T120-600-N(on request) | 10 | 76 | 63 | €287.91/бр. | |
| 3. 023-T120-620-N(on request) | 12 | 76 | 63 | €287.91/бр. | |
| 4. 023-T120-627-N(on request) | 1/2" | 76 | 63 | €301.05/бр. | |
| 5. 023-T120-660-N(on request) | 16 | 76 | 63 | €287.91/бр. | |
| 6. 023-T120-695-N(on request) | 3/4" | 76 | 63 | €301.05/бр. | |
| 7. 023-T120-700-N(on request) | 20 | 76 | 63 | €287.91/бр. | |
| 8. 023-T120-750-N(on request) | 25 | 76 | 63 | €287.91/бр. |
