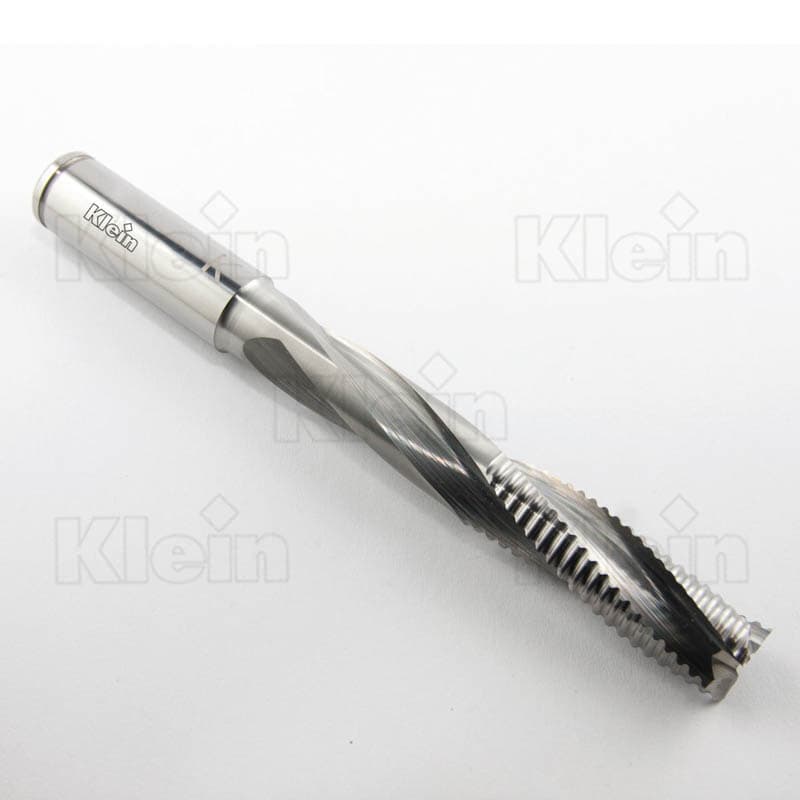

Solid carbide spiral cutters z=2 - z=3

Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

  • Right-hand rotation with "UP CUT SPIRAL".
  • Chip-breaker execution.

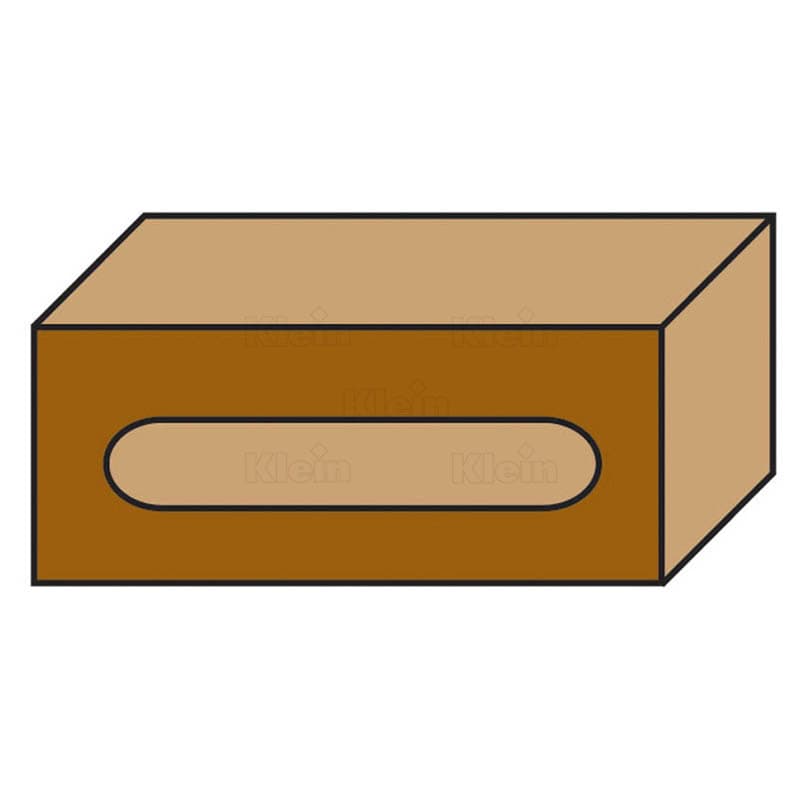

  • For locks and slot mortising.
  • Router bits with diameter from 14 mm to 18 mm, are produced with shank for Seeger retaining rings.

USE EXAMPLE:

  • Z=2/Z=3.
  • D= 14÷18 mm: RPM 12.000-20.000.
  • Stepwise processing 0,3-0,4 mm.
  • Can work deeply and have excellent chip evacuation.



Variants:

#
Rotation
Price:Add to cart
1. 023-T157-140-R(on request)14x451495202RH155€268.38/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-140-R)

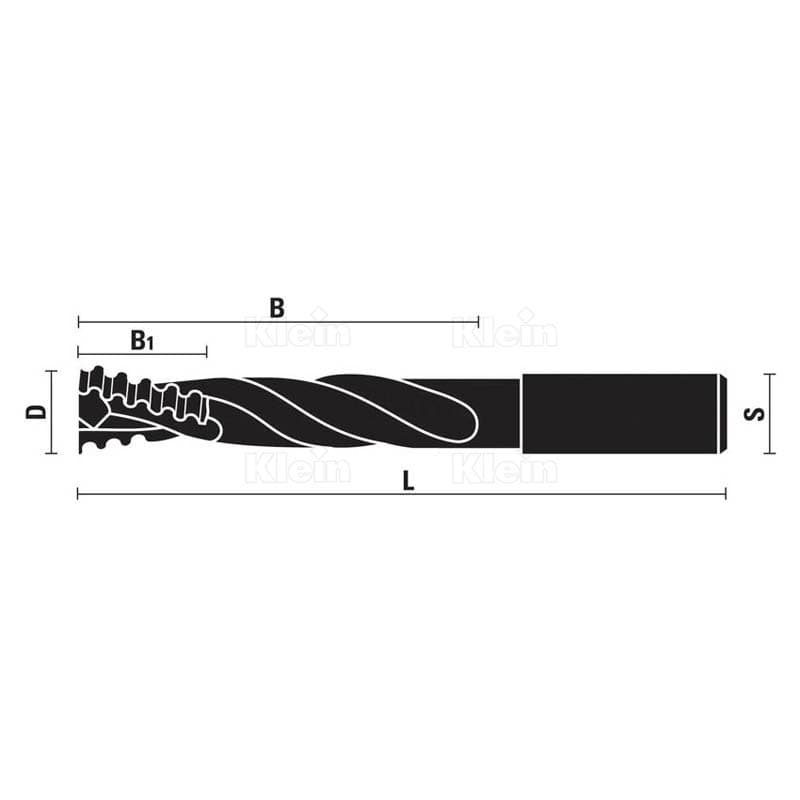

S: 14x45, D: 14, B: 95, B1: 20, Z: 2, Rotation: RH, L: 155

Enter quantity:

1 бр. × €268.38/бр. = €268.38

2. 023-T157-141-R(on request)14x451495453RH150€210.35/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-141-R)

S: 14x45, D: 14, B: 95, B1: 45, Z: 3, Rotation: RH, L: 150

Enter quantity:

1 бр. × €210.35/бр. = €210.35

3. 023-T157-160-R(on request)16x4516115252RH175€374.42/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-160-R)

S: 16x45, D: 16, B: 115, B1: 25, Z: 2, Rotation: RH, L: 175

Enter quantity:

1 бр. × €374.42/бр. = €374.42

4. 023-T157-161-R(on request)16x451695452RH140€294.76/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-161-R)

S: 16x45, D: 16, B: 95, B1: 45, Z: 2, Rotation: RH, L: 140

Enter quantity:

1 бр. × €294.76/бр. = €294.76

5. 023-T157-162-R(on request)16x4516100503RH150€219.19/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-162-R)

S: 16x45, D: 16, B: 100, B1: 50, Z: 3, Rotation: RH, L: 150

Enter quantity:

1 бр. × €219.19/бр. = €219.19

6. 023-T157-180-R(on request)18x4518115252RH175€462.62/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-180-R)

S: 18x45, D: 18, B: 115, B1: 25, Z: 2, Rotation: RH, L: 175

Enter quantity:

1 бр. × €462.62/бр. = €462.62

7. 023-T157-181-R(on request)18x4518100503RH150€265.57/бр.

Solid carbide spiral cutters z=2 - z=3 (023-T157-181-R)

S: 18x45, D: 18, B: 100, B1: 50, Z: 3, Rotation: RH, L: 150

Enter quantity:

1 бр. × €265.57/бр. = €265.57
