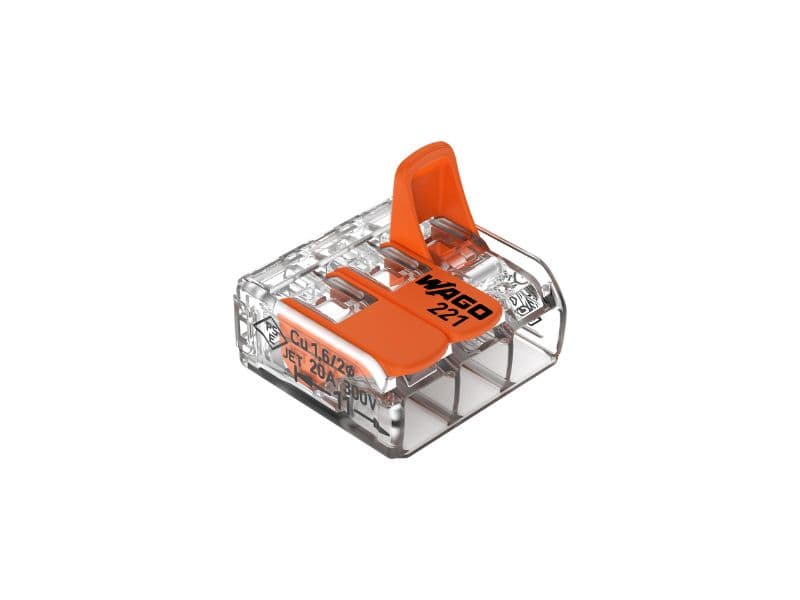

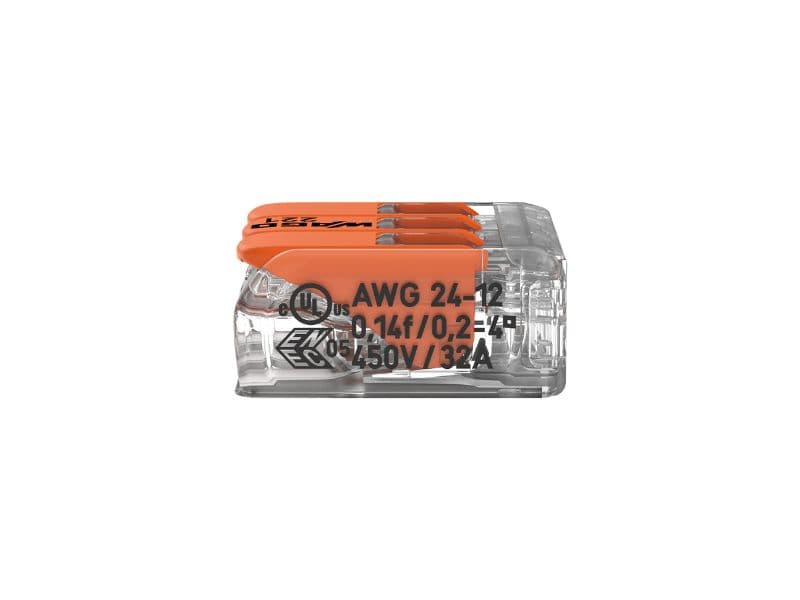

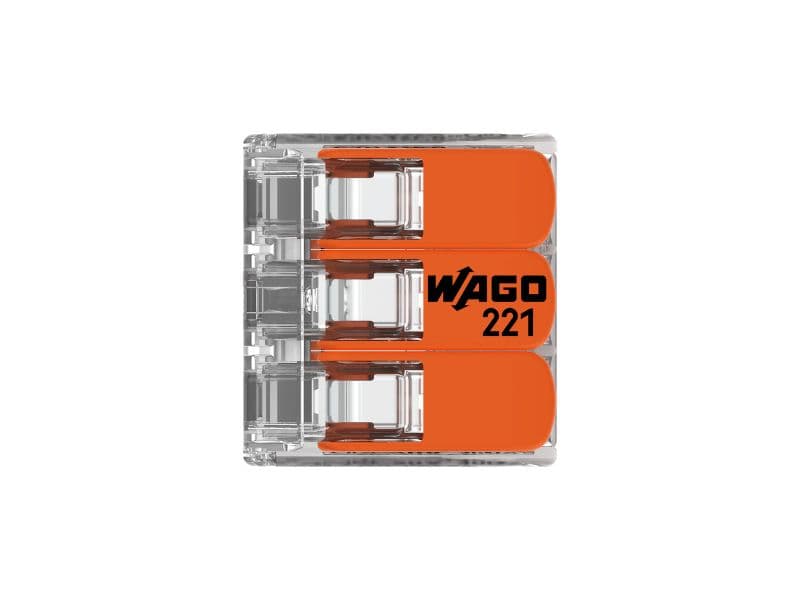

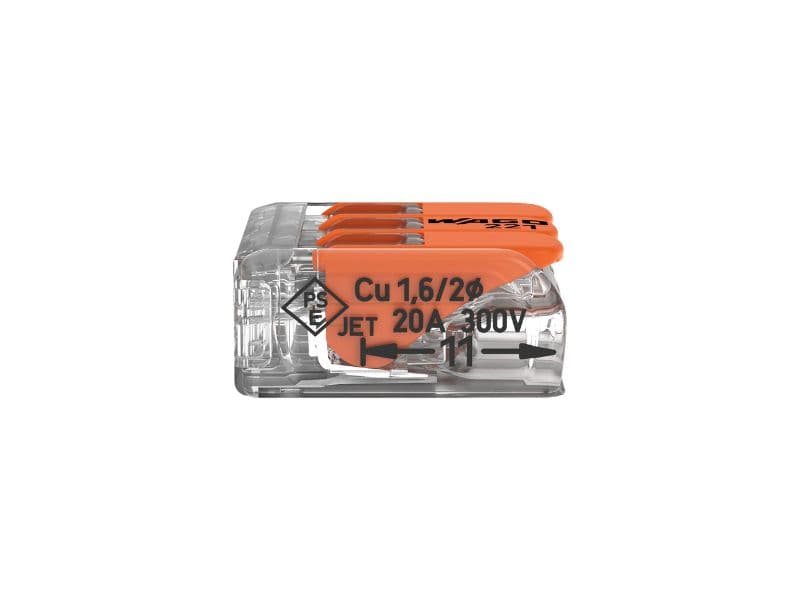

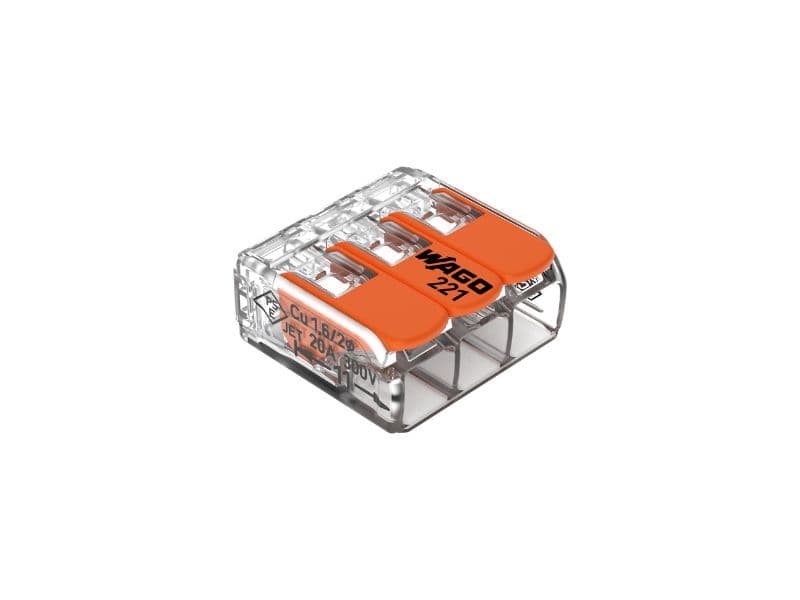

Wire to wire connector 221-413

Connection technology: CAGE CLAMP®
Actuation type: Lever
Connectable conductor materials: Copper
Nominal cross-section: 4 mm² / 12 AWG
Solid conductor: 0,2 … 4 mm² / 24 … 12
AWG Stranded conductor: 0,2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor: 0,14 … 4 mm² / 24 … 12 AWG
Strip length: 11 mm / 0.43 inches
Wiring direction: Side-entry wiring

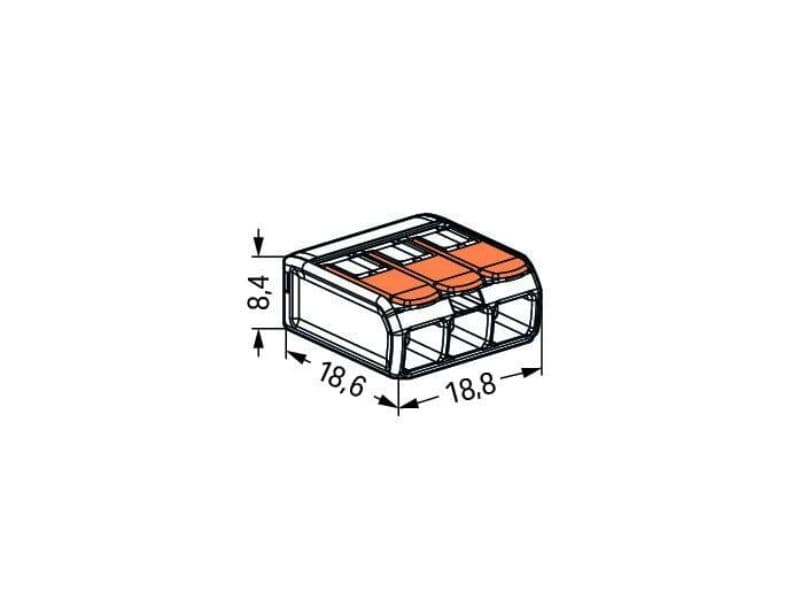

Our splicing connector with levers (item number 221-413) simplifies electrical installations. From intercom system wiring to electric ovens—connecting different conductor types is quick and easy with WAGO's practical 221 Series splicing connector. Conductors should only be connected to splicing connector with levers if their strip length is 11 mm . Rated current and voltage are important parameters when choosing a splicing connector, as they determine the product's suitability for different applications. This product has a rated voltage of 450 V and a rated current of 32 A, making it suitable for high-load applications. This product features conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The item's dimensions are (18.8 x 8.4 x 18.6) mm (width x height x depth). Splicing connector with levers is suitable for conductor cross sections ranging from 0.2 mm² to 4 mm².
