Trimatic for hinges
Note: Images are for informational purposes only. There may be a discrepancy with the actual product.

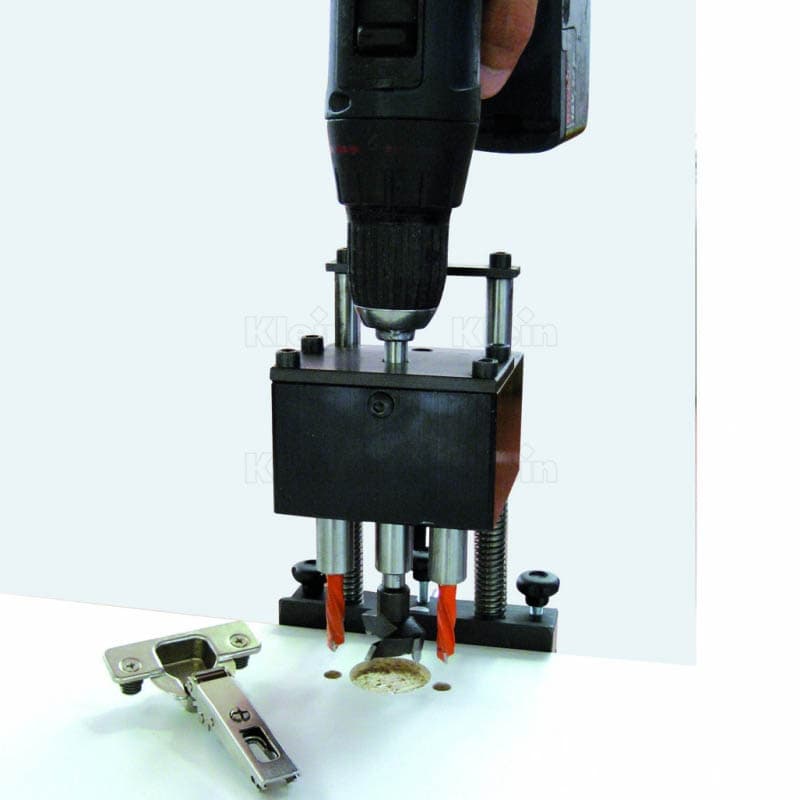

TRIMATIC are drilling jigs which allow making holes required in a single pass using a normal pillar drill or a portable electric drill.
These articles are dedicated to craftsmen and hobbysts who have drilling problems when fitting hinges or positioning shelves with holes at a distance between centres of 32 mm.

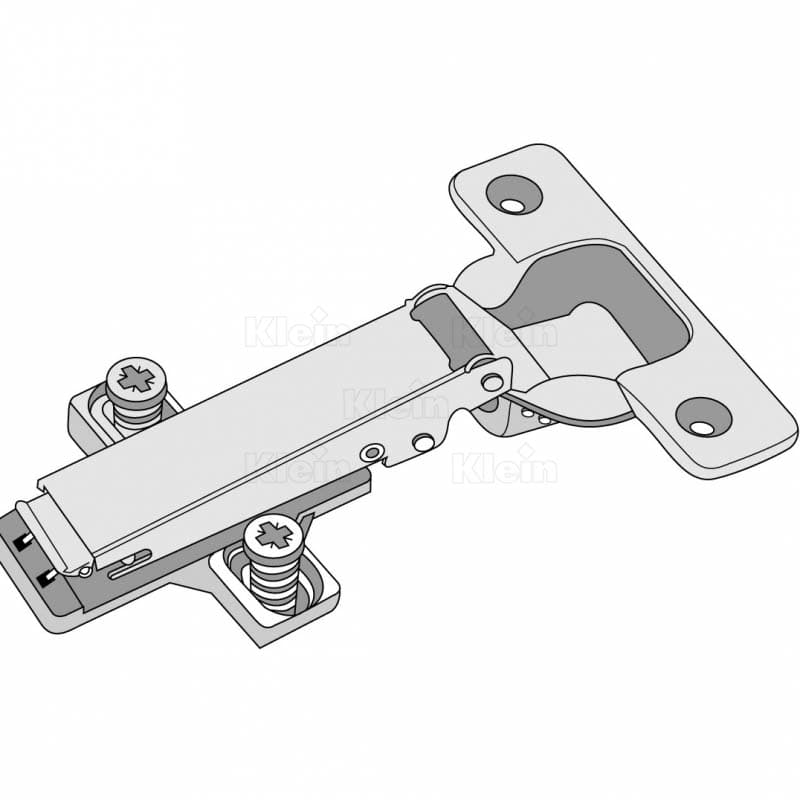

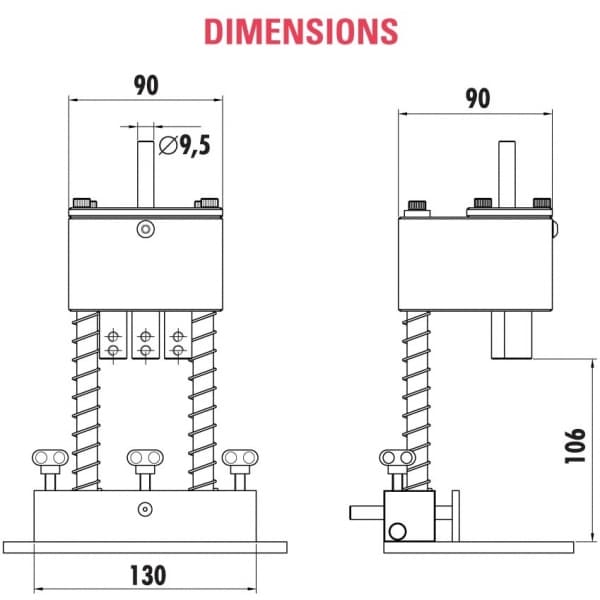

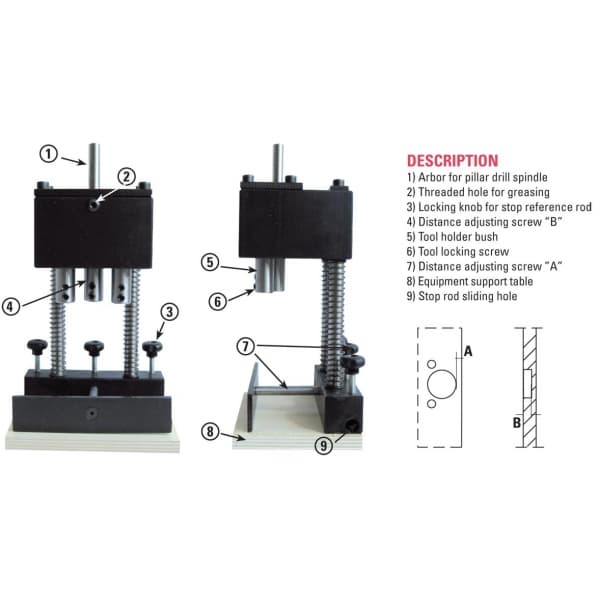

The TRIMATIC unit with three tool-holders is suitable to make the three holes to fix the hinge in a single pass with distance between centres depending on the hinge to be fixed. (see outline below)
Tools diameter depends on the hinge used. The central bit must have right hand rotation, the lateral bits have left hand rotation.
NB: Boring bits are not included.
Download here the "Trimatics' Brochure"
Documents
Variants:
| # | Price: | Add to cart |
|---|---|---|
| 1. 023-TRIMATIC 38/7,5(on request) | €429.49/бр. | |
| 2. 023-TRIMATIC 42/11(on request) | €429.49/бр. | |
| 3. 023-TRIMATIC 45/9,5(on request) | €429.49/бр. | |
| 4. 023-TRIMATIC 48/6(on request) | €429.49/бр. | |
| 5. 023-TRIMATIC 48/9(on request) | €429.49/бр. | |
| 6. 023-TRIMATIC 52/5,5(on request) | €429.49/бр. | |
| 7. 023-TRIMATIC 52/9(on request) | €429.49/бр. | |
| 8. 023-TRIMATIC 52/7,5(on request) | €429.49/бр. |
